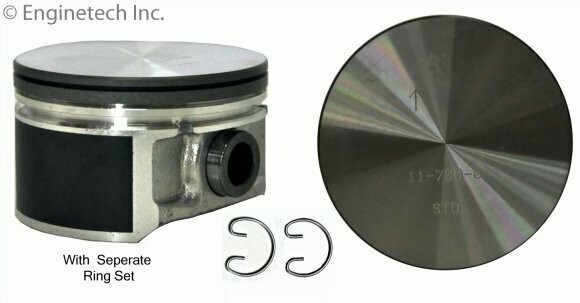

ENGINETECH PISTON SET

ENGINETECH

[Piston] Set

Flat top; 1.217" CH; Coated skirt; Use C86126 rings

Enginetech pistons have superior size and weight grading within each set. Enginetech pistons are manufactured with state of the art materials to match OE requirements. We offer cast aluminum, hypereutectic, and forged applications. Treatments such as skirt coatings, anodized heads & Ni-resist inserts are used as required. Enginetech specializes in providing high performance engine pistons for engine rebuilds for domestic, import, and high performance application.

Bore Diameter	3.386
Bore Diameter	86.00
Clearance	0.0007
Compression Height	1.217
Height	0.334 in
Oil Ring Thickness	3.00 MM
Piston Compression Ratio	9.7:1
Piston Pin Outside Diameter	0.8661
Recess	None
Second Compression Ring Thickness	1.50 MM
Top Compression Ring Thickness	1.50 MM

CHRYSLER	300	2005-2010
CHRYSLER	CONCORDE	1998-2004
CHRYSLER	INTREPID	2002-2004
CHRYSLER	SEBRING	2001-2010
DODGE	AVENGER	2008-2010
DODGE	CHARGER	2006-2010
DODGE	INTREPID	1998-2004
DODGE	MAGNUM	2005-2008
DODGE	STRATUS	2001-2006
